The OS/kernel in Urbit is called Arvo. Arvo is run inside a virtual machine called Vere - this is the urbit binary you execute in the terminal. You can also install a number of userspace applications such as Groups, Studio, Pals, etc. Each of these layers—Vere, Arvo and apps—receive updates. In this guide, we'll look at how to deal with these updates, the meaning of the update notifications you'll get in Landscape, and how these layers depend on each other.
Vere is the runtime, aka the urbit binary. Its version format is v3.2. Vere is typically backwards-compatible with older Arvo versions. Vere can be updated by either running its next command, or by downloading a new version and swapping them out. The ship must be shut down before performing either of these actions.
Arvo is the kernel and core libraries. Its version format is [%zuse 410]. Arvo depends on Vere. If Vere is incompatible, it will fail to boot. Arvo lives in the %base desk and receives over-the-air updates, typically from your sponsor. If an update requires a new Vere version, the update will be queued until Vere is updated. Arvo uses kelvin versioning, which means its version number counts down towards zero (therefore 410 is newer than 411). Apps can also block Arvo updates if they're not compatible, though a blocked Arvo update can be forced by suspending the blocking apps.
Update-related notifications will be shown in the notifications area of Landscape. You may see one of these three messages:

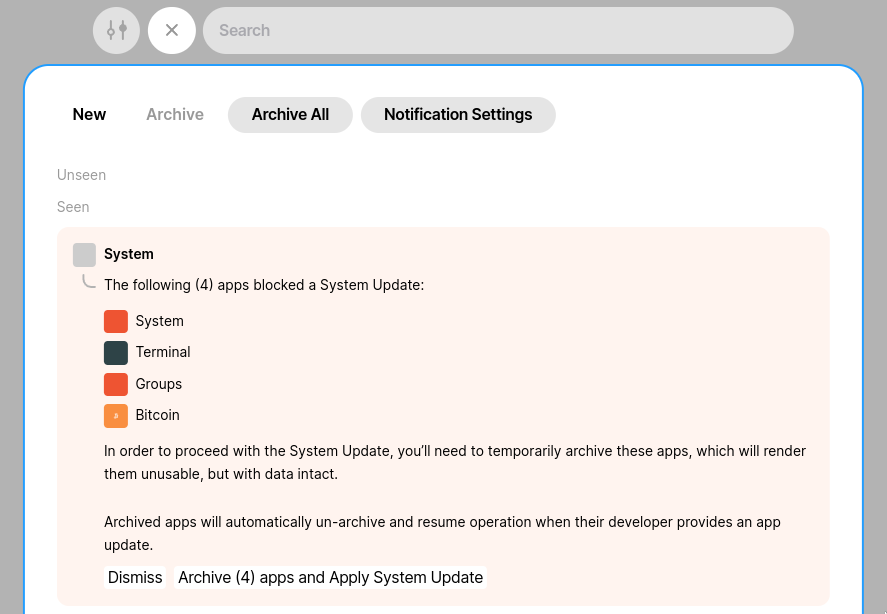

This means you've received an over-the-air kernel update, e.g. an update from [%zuse 419] to [%zuse 418]. The update could not be applied because the given apps are not compatible with the new kernel version, nor do they have compatible updates pending. If you hit "Archive (n) apps and Apply System Update", the blocking apps will be suspended and the kernel upgrade applied. Once the apps in question receive compatible updates, they'll automatically be updated and unsuspended.
If the blocking apps are important to you and you don't want to suspend them, you may want to hold off on applying the kernel update and wait to receive updates for those apps. You may also want to double-check you have automatic updates enabled for the given apps. See the app updates section below for more details.

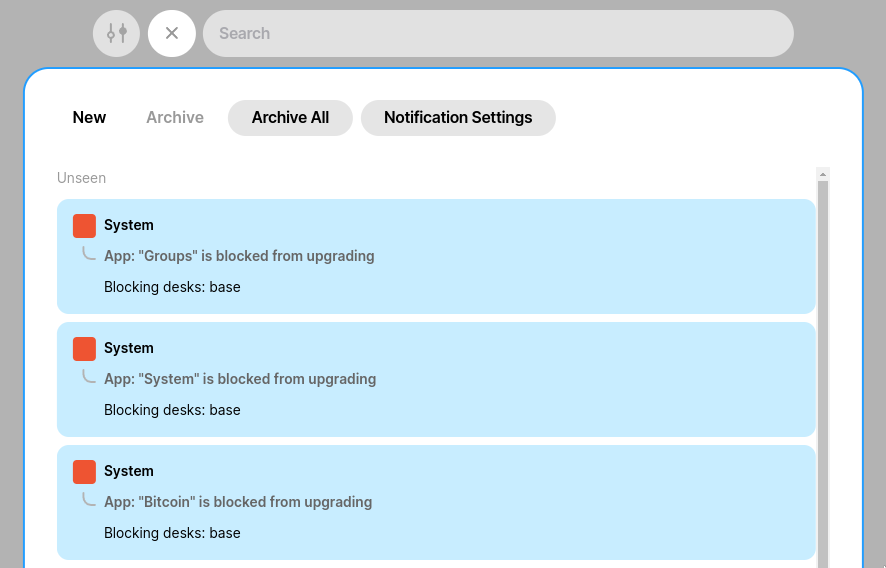

These messages happen when an app has received an update, but it's for a newer kernel version than you currently have, so it can't be installed. The update will be queued until the kernel is updated, at which point it will be automatically applied.
Such updates may be blocked because:
You have not yet received the new kernel update
You have received the kernel update but not all apps have received updates to make them compatible, so other apps are blocking the update. If this is the case, you'll also see the previous "The follow (n) apps..." notification.
You've received the kernel update and all apps have received updates to make them compatible, but the runtime is outdated so it's blocking the kernel update. If this is the case, you'll also see a "The runtime blocked..." message as shown in the next screenshot.
These kinds of messages don't usually require action. App developers will typically ship app updates ahead of the kernel update release, so you'll see these messages in the days before the release.

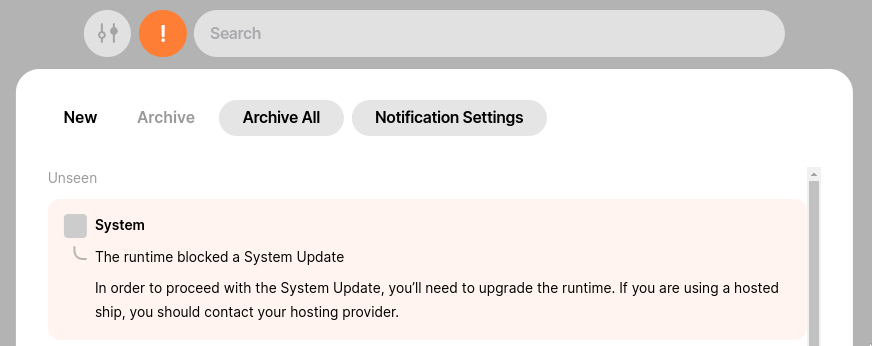

This means you tried to apply a kernel update, but the runtime (the urbit binary) is not compatible with the new kernel version. In this case, you'll need to update the runtime. See the runtime updates section below for how to do this.
As of version 1.9, the runtime has a built-in update mechanism. First, shut your ship down. Then, run either urbit next /path/to/your/pier or ./your/pier/.run next, depending on whether it's docked. When you run next, it'll check for an update, download it, and apply it. You can then start your ship up again. If the update fails, check that /your/pier/.bin/pace contains live. If it has once, edit it to say live and try running next again. Once you boot the ship back up after updating the runtime, you may need to run |bump in the dojo to apply any queued kernel updates.
If you're still running a binary older than 1.9, you'll need to:
Shut down your ship with Ctrl+d or by typing |exit in the dojo.
Download the new binary with the command given for your operating system in the command line install guide.
Start your ship back up with the new urbit binary you downloaded.
If you have a kernel update that was blocked, run |bump in the dojo to apply it.
To check the current version of the runtime, the first line when you start up a ship will say something like urbit 1.10. If you run the urbit binary without specifying a pier or other arguments, it'll also say its version at the top of the print-out.
Kernel updates are delivered in OTAs (over-the-air updates). For anything other than a comet, this should be automatically configured with your sponsor as the source. If you're running a comet, you may need to run |ota (sein:title our now our) to enable them.
Arvo (the kernel) uses kelvin versioning, which mean version numbers count down towards zero (therefore 418 is newer than 419). The version of the Zuse utility library is used to represent the kernel version as a whole. You can check the current version by typing zuse in the dojo.
The kernel requires that the runtime (urbit binary) is compatible with its current version. The runtime is usually backwards-compatible with old kernel versions, but not with new ones. This means if you're running an older version of the runtime, it will block kernel updates.
All apps you install (such as Groups, Studio, Pals, etc) specify the kernel version they're compatible with. If any apps have not received updates for the new kernel version, they will block the kernel from updating.
This means that both the runtime and all apps must be up-to-date in order to apply a kernel update. If either of these conditions are not met, you will be notified in landscape as described in the update notifications section above, and you will need to take the actions described.
If you have apps installed that simply don't have kernel-compatible updates available, you can force the kernel update by clicking the button in the notification described above, or by running |bump, =force & in the dojo. Doing so will suspend the incompatible apps until they receive compatible updates.
If the kernel update was blocked by an outdated runtime and you've since updated the runtime, you can tell it to try applying the update again by running |bump in the dojo.
To check if you have unapplied kernel updates queued, you can run +vats %base in the dojo. You'll see an output like this:
%base
/sys/kelvin: [%zuse 418]
base hash: 0vu.fptbs.6f05p.c9ghb.qfh7e.sbhum.vfnnr.osfs7.vv1i1.qveva.dfvli
%cz hash: 0vu.fptbs.6f05p.c9ghb.qfh7e.sbhum.vfnnr.osfs7.vv1i1.qveva.dfvli
app status: running
force on: ~
force off: ~
publishing ship: ~
updates: tracking
source ship: ~marzod
source desk: %kids
source aeon: 8
pending updates: ~
::The updates entry says whether automatic updates are enabled. If it doesn't say tracking, you can run |ota (sein:title our now our) to enable them. The pending updates section will list any blocked updates, it'll look something like ~[[%zuse 417]]. The /sys/kelvin line says the version it's currently on.
Apps (such as Groups, Studio, Pals, etc) receive OTA (over-the-air) updates from their respective publishers. Automatic updates for each app should be enabled by default when you install them. Normal updates (those unrelated to a kernel update) should not require any user action - when you see the update notification in Landscape it's already been done.
When there are kernel updates, app developers are encouraged to push updates for their apps before the kernel update itself is deployed. This means you'll probably see a bunch of notifications about app updates being blocked by the base desk in the days before the kernel update ships. You don't need to worry about these - the updates will be queued and automatically applied when the kernel update arrives.
Sometimes, app developers may not get a kernel-compatible update out in time, or else they have simply stopped maintaining the app. In this case, such apps will block kernel updates, and you'll see the "The following (n) apps blocked a System Update" notification described above. In this case, the app will need to be suspended in order for the kernel update to complete. You can do this either by clicking the button in that notification or running |bump, =force & in the dojo. You should not manually suspend apps via their tile menu or the |suspend command, because they will not be automatically revived if they later receive a kernel-compatible update.
Automatic app updates can be paused with the |pause %the-desk command in the dojo. The desk name may differ from the app name - you can find the desk name by clicking on "App Info" in the app tile's hamburger menu and looking for the "Installed into" entry.
To check the update status of an app, you can run the +vats %the-desk command in the dojo. It will give you a print-out like this:
> +vats %docs
%docs
/sys/kelvin: [%zuse 418]
base hash: 0vu.moe96.kmq1d.a0nen.76vf6.t5qbc.aokqv.89fg5.avctv.pvq08.pdio0
%cz hash: 0vu.moe96.kmq1d.a0nen.76vf6.t5qbc.aokqv.89fg5.avctv.pvq08.pdio0
app status: running
force on: ~
force off: ~
publishing ship: ~
updates: tracking
source ship: ~pocwet
source desk: %docs
source aeon: 30
pending updates: ~
::If there are pending updates, it usually means they're waiting for a kernel update before they can be applied. The updates entry tells you whether automatic updates are enabled.
